Wide Type Hammer Mill Machine
Home / Product Center / Hammer Mill / Wide Type Hammer Mill Machine
  • Wide Type Hammer Mill Machine
  • Wide Type Hammer Mill Machine
  • Wide Type Hammer Mill Machine
Goldlong Machinery And Engineering Co., Ltd.
PRODUCT

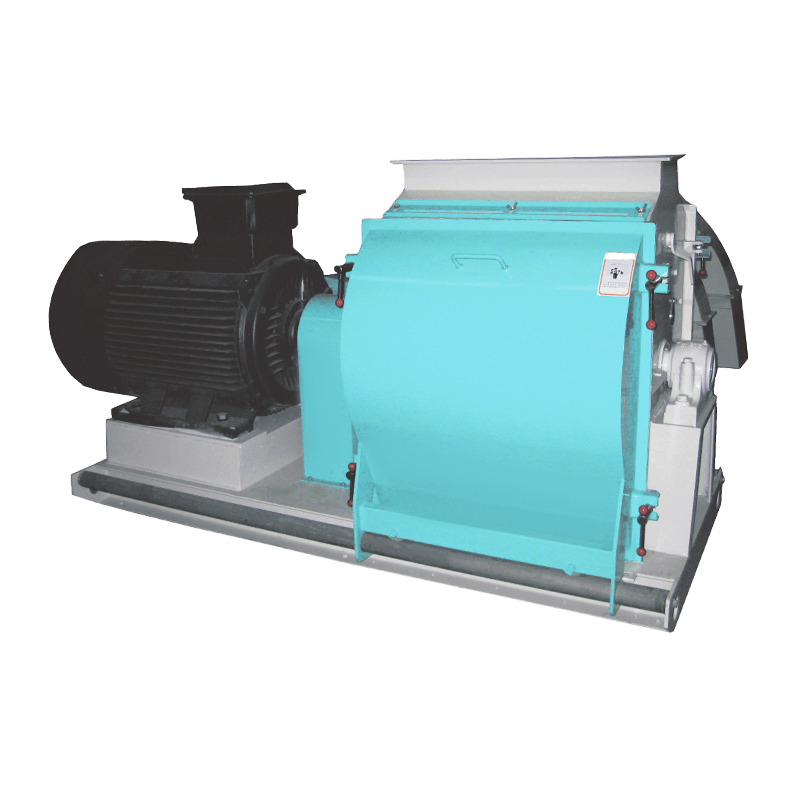

Wide Type Hammer Mill Machine

Wide Type Hammer Mill Machine is a grinding equipment designed for feed processing. Featuring a widened grinding chamber and optimized design, it can meet the production needs of various particle size requirements. By precisely adjusting the gap between the hammers and the screen, this equipment can perform both coarse and fine grinding, and is widely used in the production of poultry feed, aquatic feed, and pig feed.

PREV：SWFL Vertical Pulverizer NEXT：SFSP Series Tear Circle Hammer Mill
Contact Us
  • Product Details
  • FAQ
  • Contact Us

Product Features:

Wide Grinding Chamber: The large crushing chamber increases the screening area and improves the production capacity for particles smaller than 1.5mm.

Adjustable Gap Design: The gap between the hammers and the screen can be adjusted as needed to meet the requirements of different production processes for coarse and fine grinding.

Vacuum-Welded Hammers: The hammers are vacuum-fused and staggered, ensuring a longer service life and higher production efficiency.

Imported High-Quality Components: High-quality bearings and oil seals ensure smooth operation and a long service life.

Bidirectional Rotor Design: The mill rotor can operate in both directions, increasing the utilization rate of the hammers and reducing maintenance costs.

Variable Frequency Feeder: A specially designed variable frequency feeder ensures stable feeding and avoids blockages or overload.

Product Advantages:

High Efficiency and Energy Saving: Utilizing an impact crushing structure, energy efficiency is optimized, reducing energy consumption while increasing production capacity.

Wide Applicability: Suitable for high-efficiency crushing of poultry, aquatic, and other feeds, especially suitable for processing environments with diverse needs and high production volumes.

Strong Stability: Directly coupled drive system ensures stable high-speed operation, reducing equipment vibration and noise, and enhancing equipment reliability and service life.

Easy Maintenance: The equipment has a simple structure, is easy to maintain and clean, and parts are easy to replace, reducing downtime.

Product Applications:

The wide-type fine pulverizer is mainly used for crushing animal feed, especially suitable for the production of poultry, aquatic, and pig feed. With its powerful crushing capacity and efficient design, it can effectively crush raw materials into the required particle size, meeting the production needs of different feed products, improving production efficiency, and ensuring feed uniformity and quality.

Product Name FSWP65*45D FSWP65*60D FSWP65*90D FSWP65*120D FSWP65*150D
Power(KW) 30～45 55～75 90～110 132～185 200～315
Output(t/h) 1.5～2.4 3～4 5.2～7 7.7～9.8 11～16
