SWFL Vertical Pulverizer

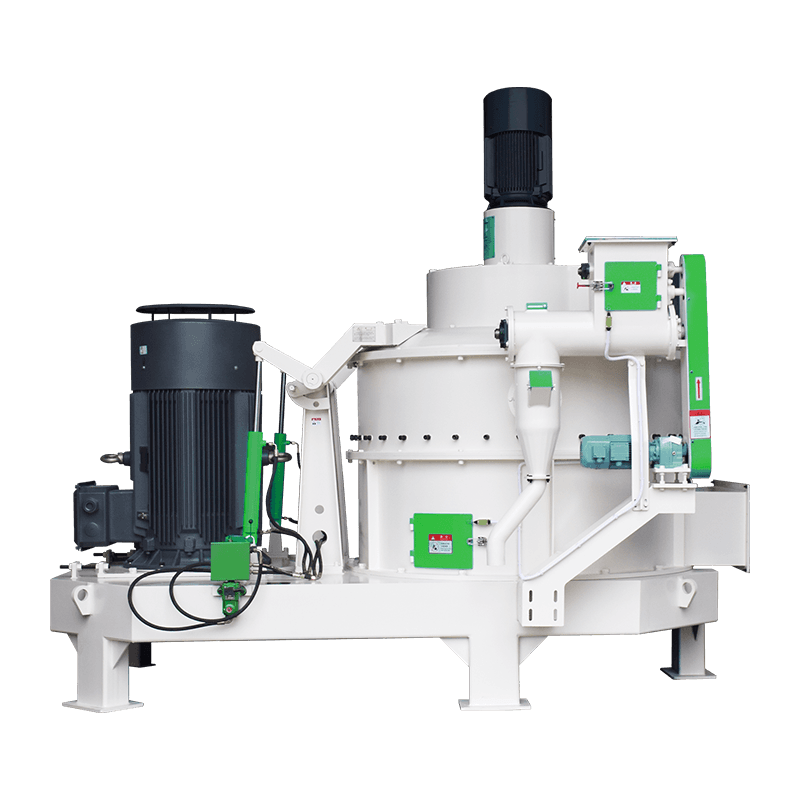

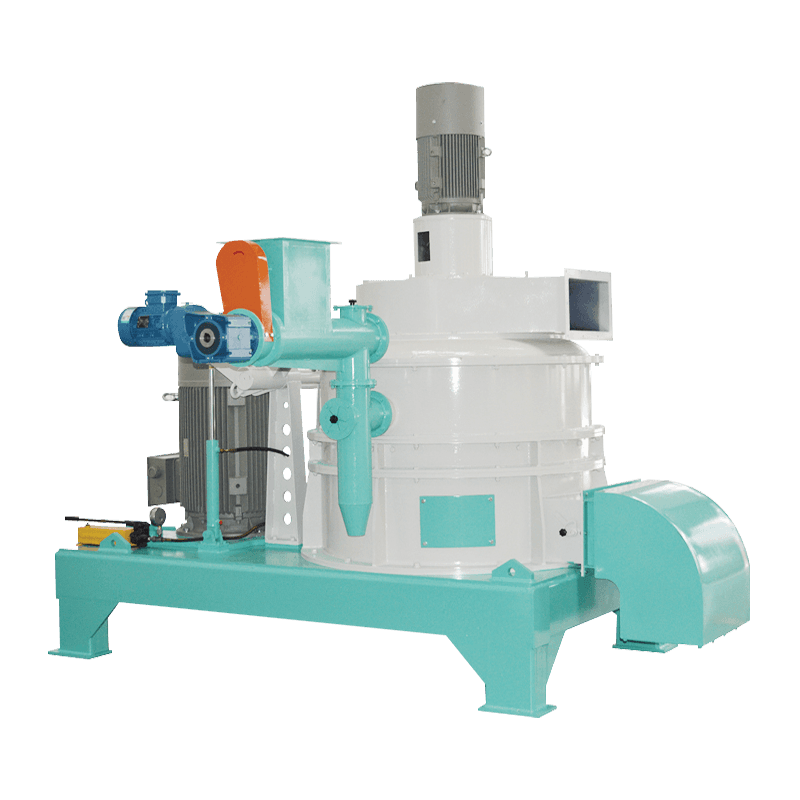

SWFL vertical pulverizer features a vertical shaft impact crusher design, offering high crushing efficiency and stable operation. The equipment is easy to operate and highly automated, widely used in poultry, aquatic, and pig feed production. It allows for precise adjustment of the gap between the hammers and the screen, meeting the needs of coarse and fine crushing for different particle sizes. This ensures high efficiency and long-term stable operation, improving production efficiency and product quality.

PREV：No previous product NEXT：Wide Type Hammer Mill Machine
Contact Us
  • Product Details
  • FAQ
  • Contact Us

Product Features:

Vertical Shaft Structure: The vertical shaft impact crusher design ensures stable power transmission. The high-speed rotating crushing disc rapidly decomposes materials, achieving efficient micro-powder processing.

Imported Bearings: Equipped with high-quality imported bearings and oil seals, ensuring smooth operation and reducing failure rates.

Variable Frequency Feeding System: Optional variable frequency self-cleaning feeder or belt magnetic separator feeder ensures a stable feeding rate and improves work efficiency.

Bidirectional Rotor: The rotor can operate in both directions, further increasing the utilization rate of the hammers and extending their service life.

Adjustable Gap: By adjusting the gap between the hammers and the screen, different needs for coarse and fine crushing can be flexibly met. Vacuum-fused Hammer Blades: The hammer blades are arranged in an alternating pattern using a vacuum fusion process, significantly improving the equipment's service life and crushing efficiency.

Product Advantages:

High Efficiency and Energy Saving: Utilizing an impact structure, it achieves high efficiency and energy saving, significantly improving crushing efficiency. Compared to traditional equipment, it consumes less energy, reducing production costs.

High Stability: Direct coupling drive and a special variable frequency feeder ensure stable impeller operation, reducing mechanical failure rates and improving overall equipment reliability.

Intelligent Control: Equipped with a crusher load controller and optional bearing temperature measurement device, it boasts a high degree of automation, monitoring the equipment's operating status in real time to ensure a safer and more precise production process.

Safety and Reliability: The movable operating door and linked screen pressing mechanism make operation simpler and more reliable. Optimized air duct design ensures better heat dissipation.

Product Applications:

Primarily used in the feed industry, especially in the production of high-grade poultry feed, aquatic feed, and pig feed. Fine crushing ensures uniform feed fineness, contributing to improved animal digestibility and healthy growth.

Serial Number Product Name Specification model Unit(unit) Power(KW)
1 Ultra-fine Pulverizer SWFL110 1  75
2 Ultra-fine Pulverizer SWFL110 1  90
