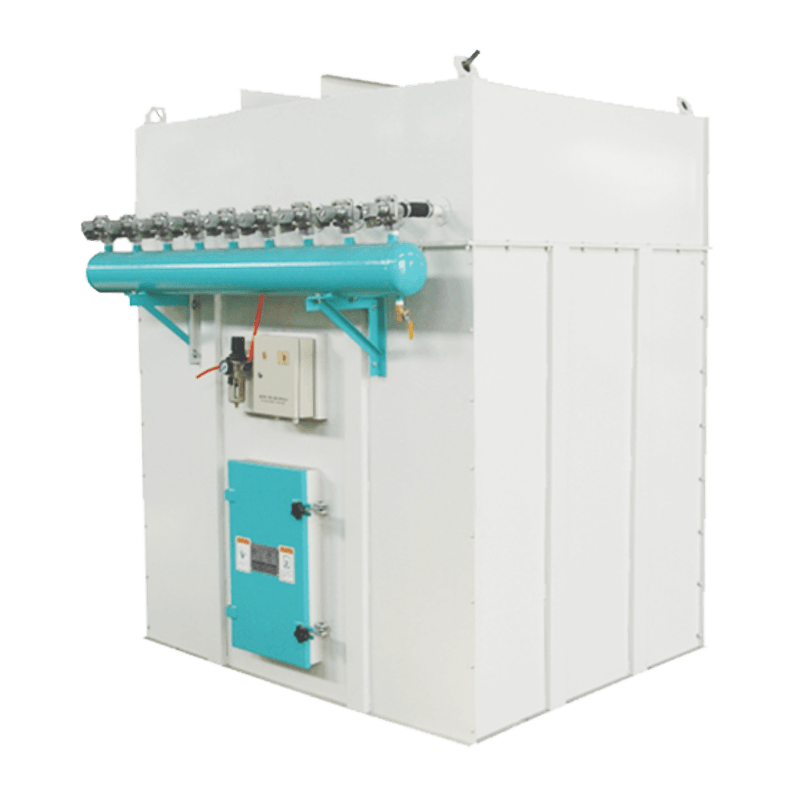

TBLMFa Series Square Pulse Filter

TBLMFa series square pulse filter combines a square box and cylindrical design, resulting in a robust, compact, and space-saving design with flexible layout options. Large-capacity filter units efficiently capture dust, and the filter bags are easy to install and remove, facilitating maintenance. Low-pressure pulse solenoid valves support multi-point synchronous pulse-jet cleaning, ensuring stable dust removal performance. Suitable for the feed industry, it effectively controls dust concentration in the workshop, improves air quality, and ensures production safety and operational comfort.

PREV：TFPX Rotary Distributor NEXT：TBLMy Series Round Pulse Filter
Contact Us
  • Product Details
  • FAQ
  • Contact Us

Product Features:

This product adopts a square box body combined with a cylindrical filter structure, allowing for flexible equipment layout and customized installation according to workshop space.

Equipped with high-capacity filter units and large-area filter bags, it efficiently captures dust particles, ensuring air cleanliness meets industry standards.

Maintenance is convenient; filter bags can be quickly disassembled and replaced without the need for specialized operators.

Equipped with low-pressure pulse solenoid valves, it can simultaneously pulse-jet clean multiple filter points, ensuring long-term stable and uniform dust removal efficiency.

Product Advantages:

The large filtration area and precisely designed pulse-jet system enable the dust collector to complete efficient dust removal in a short time, achieving better dust removal results.

The flexible process layout can be adjusted to meet the needs of different production lines, maximizing the utilization of workshop space.

The low-pressure direct-flow solenoid valve design improves dust removal efficiency and reduces energy consumption, making it an environmentally friendly and energy-saving device.

It can adapt to high dust concentration working environments, making it particularly suitable for the dust removal needs of feed processing workshops.

Product Applications:

Widely used in the feed production industry, especially in feed workshops with high dust concentrations. This equipment effectively reduces dust pollution in the workshop and ensures the stable operation of the production line.

Model

TBLMFa9

TBLMFa12

TBLMFa21

TBLMFa24

TBLMFa28

TBLMFa32

TBLMFa40

Air Volume(m³/h)

408～816

540～1080

1416～2832

1620～3240

1896～3792

2892～5784

3612～7224

Filter Area (m²)

3.4

4.5

11.8

13.5

15.8

24.1

30.1

Model

TBLMFa48

TBLMFa56

TBLMFa64

TBLMFa80

TBLMFa90

TBLMFa128

TBLMFa220

Air Volume(m³/h)

4344～8688

5064～10128

5784～11568

7234～14480

8183～16290

11574～23168

19894～39820

Filter Area (m²)

36.2

42.2

48.3

60.3

67.8

96.5

165.8

Bag length: 1000mm, 1500mm or 2000m or customized
