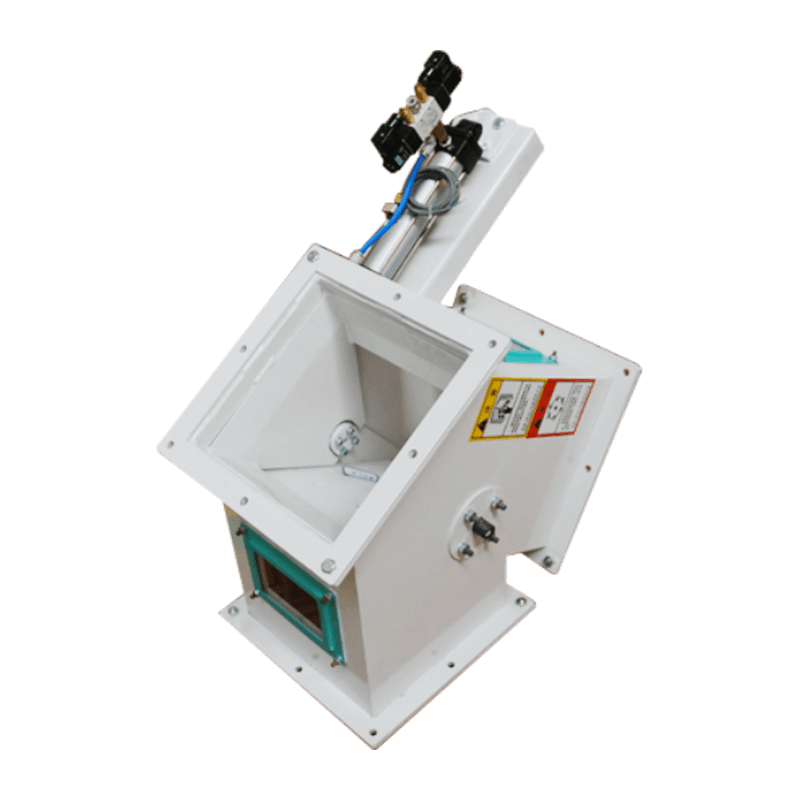

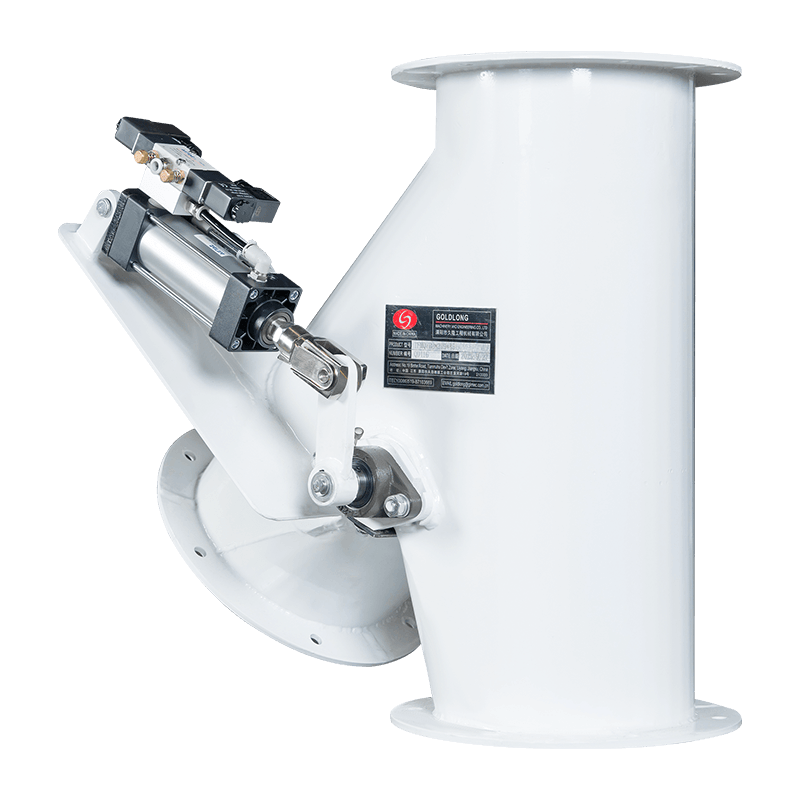

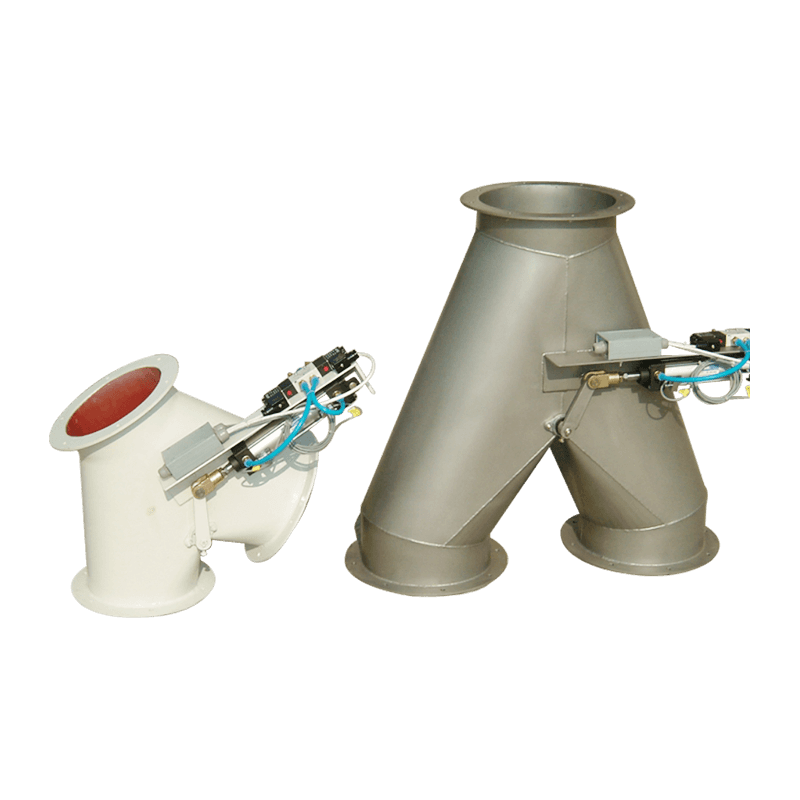

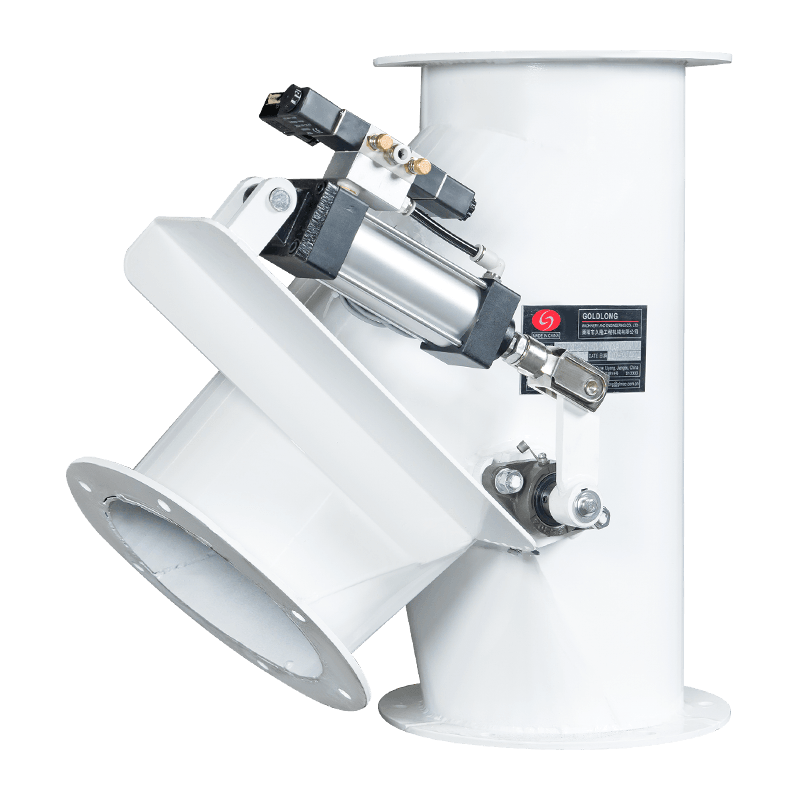

TBDQ/TBDQy Series Pneumatic Three-way

TBDQ/TBDQy series pneumatic three-ways are manufactured using high-strength, wear-resistant materials. They feature a compact structure, excellent sealing performance, sensitive pneumatic drive, and smooth switching, ensuring rapid and precise material flow distribution. The round channel design reduces resistance, ensures smooth material transport, and provides high-temperature and corrosion resistance, making installation and maintenance convenient. Widely used in pneumatic conveying systems in the feed, grain, chemical, and plastics industries, they enable diversion control and multi-point distribution, improving production efficiency and automation levels.

PREV：Air Lock NEXT：TCXT Tubular Magnet
Contact Us
  • Product Details
  • FAQ
  • Contact Us

Product Features:

Made with high-strength, wear-resistant materials, featuring a compact structure and excellent sealing performance, ensuring stable operation over extended periods.

Sensitive pneumatic drive response, smooth operation, and adjustable switching speed according to system requirements.

The round design optimizes fluid flow, ensuring smooth material flow and reducing resistance and material accumulation.

Standardized interfaces facilitate installation and maintenance, adapting to various pipeline layouts.

Product Advantages:

High control precision, enabling rapid diversion and flow direction switching, improving production efficiency.

Corrosion and high-temperature resistant, adaptable to complex industrial environments, and long service life.

Highly compatible with pneumatic conveying systems, allowing for flexible integration into existing production lines.

Scientifically designed and easy to operate, reducing system failures and downtime.

Product Applications:

Widely used in pneumatic conveying systems for the diversion and directional transport of powder and granular materials.

Suitable for conveying processes in industries such as feed, grain, chemicals, plastics, and building materials.

Suitable for scenarios requiring multi-point distribution, precise control of material flow, or automated production.

Width (mm)

Capacity (t/h)

200

50

250

100

320

150

400

280

500

400

600

500

800

800

TZMQ series pneumatic gate: TZMQ20X20-- TZMQ80X80
TZMD series electric gate: TZMD20X20-- TZMD80X80
TZMS series manual gate: TZMS20X20-- TZMS80X80
TBDQ series pneumatic tee (30 º or 45 º): TBDQ20X20- TBDQ80X80
TBDD series electric three-way (30 º or 45 º): TBDD20X20- TBDD80X80
TBDQy series pneumatic round tee (30 º or 45 º): TBDQy20-- TBDQy50
